In many situations, a datafile or logfile must be renamed inside Oracle. Whereas the contents of the file remain valid, you need to define a new physical name or location for it. For example:

  • Sqlalter tablespace users rename to usersts; When you RENAME A TABLESPACE, the database updates all references to the tablespace name in the data dictionary, control file, and (online) datafile headers.
  • J But anyway, there are chances of adding special characters by mistake in the data file name while adding the datafile to the tablespace. You can rename the datafile using following steps. You can rename the datafile using following steps.

Racle database does not provide an easy user interface to rename a datafile of tablespace, nor database administrator can easily move or relocate the datafile to another location or directory that different from original location on creation of database. The rename or move place task has to be performed via Oracle SQLPlus command line interface. See full list on thegeekdiary.com. ALTER TABLESPACE TABLESPACENAME RENAME DATAFILE '/oldpath/name.dbf' TO '/oldpath/name.dbf'; 4. Once the alter database statement has been processed for the datafile(s) you can bring the tablespace online. ALTER TABLESPACE TABLESPACENAME ONLINE; Another method is to have the database in mount state: 1. SHUTDOWN IMMEDIATE 2.

Alter Tablespace Rename Datafile

- You want to move a database file to a different disk for performance or maintenance reasons.
- You have restored a datafile from backup, but the disk where it should normally be placed has crashed and you need to relocate it to a different disk.
- You have moved or renamed a datafile at operating system level but forgot to rename it within Oracle. At startup, you get ORA-01157 and ORA-01110. If the database is up and you try to shut it down normal or immediate, you get ORA-01116 ad ORA-01110.
- You have multiple databases on the same machine and you need to rename certain database files to prevent collision and confusion.


Managing Tablespaces and DataFiles
RENAME OR MOVE A DATAFILE FOR A SINGLE TABLESPACE

If you are using 12c or later, this process has been improved, there is no need to take it offline or copy the files using the ALTER DATABASE MOVE DATAFILE statement:
ALTER DATABASE MOVE DATAFILE 'U:ORADATAFMSSYSTEM01.DBF' TO 'S:ORADATAFMSSYSTEM01.DBF';
ALTER DATABASE MOVE DATAFILE 'U:ORADATAFMSSYSAUX01.DBF' TO 'S:ORADATAFMSSYSAUX01.DBF';
ALTER DATABASE MOVE DATAFILE 'U:ORADATAFMSUNDOTBS01.DBF' TO 'S:ORADATAFMSUNDOTBS01.DBF';

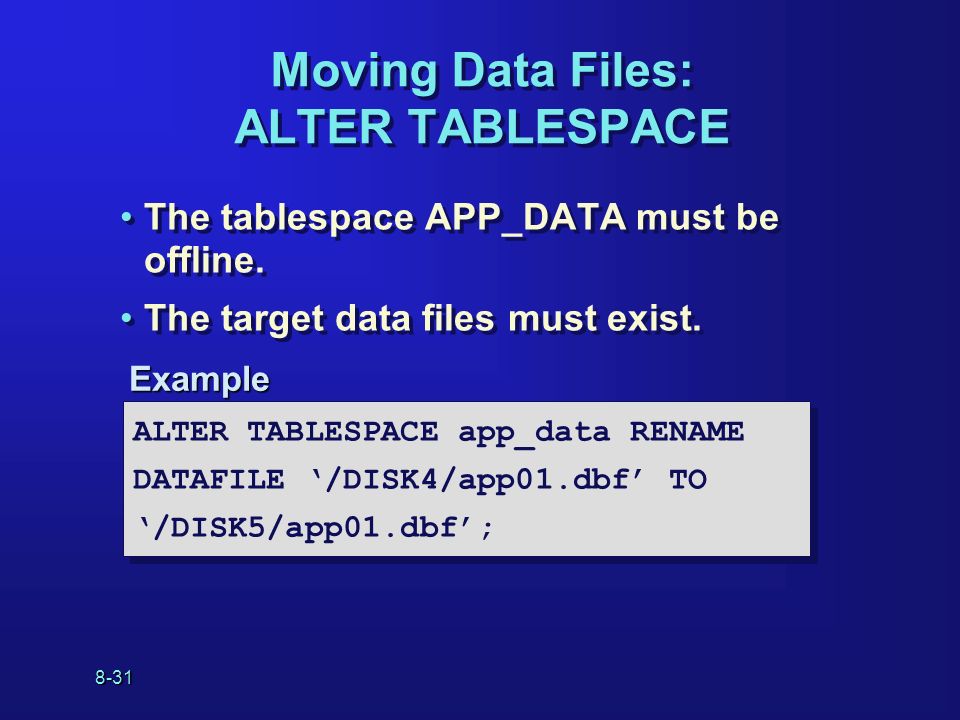

In previous Versions:

1. Make the tablespace offline.
ALTER TABLESPACE <TABLESPACE_NAME> OFFLINE;

2. Copy the datafile(s) to the new location using the operating system copy command.

3. Rename the datafile to the new location. This updates the entry for the datafile(s) in the controlfile.
ALTER TABLESPACE <TABLESPACE_NAME> RENAME DATAFILE '/old_path/name.dbf' TO '/old_path/name.dbf';

4. Once the alter database statement has been processed for the datafile(s) you can bring the tablespace online.
ALTER TABLESPACE <TABLESPACE_NAME> ONLINE;


Another method is to have the database in mount state:
1. SHUTDOWN IMMEDIATE
2. STARTUP MOUNT
3. Copy the datafile(s) to the new location using the operating system copy command
4. ALTER DATABASE RENAME FILE '/old_path/name.dbf' TO '/new_path/name.dbf';
5. ALTER DATABASE OPEN;
6. Query v$dbfile to confirm that the changes made were correct.
SELECT * FROM V$DBFILE;
7. Remove the datafile(s) from the old location at the operating system level.

ADD A DATAFILE
Adding a File is very simple:
ALTER TABLESPACE <TABLESPACE_NAME> ADD DATAFILE '<file specific> SIZE xxxM;
ALTER TABLESPACE tbs_03 ADD DATAFILE 'tbs_f04.dbf' SIZE 100M AUTOEXTEND ON NEXT 30m MAXSIZE UNLIMITED;


DROP A TABLESPACE
Dropping a Tablespace is very simple:
DROP TABLESPACE <TABLESPACE_NAME> INCLUDING CONTENTS AND DATAFILES CASCADE;

You can use just DROP TABLESPACE <tablespace name>, but the data files won’t be dropped and the tablespace must be empty (no objects exist in the tablespace); otherwise, Oracle will return an error. Further, the DROP TABLESPACE <tablespace name> INCLUDING CONTENTS command drops all the objects, if they exist in the tablespace. Next, by including the CASCADE option you can drop foreign key references from objects in the other tablespaces to the one you’re dropping. The DATAFILES option, which is available in Oracle9i, will physically delete the related data files as well.


CREATE A TABLESPACE
CREATE TABLESPACE <TABLESPACE_NAME>
DATAFILE '/opt/oracle/oradata/FGUARD/fg_data01.dbf' Size 800M AutoExtend On Next 100M Maxsize 2000M,
'/opt/oracle/oradata/FGUARD/fg_data02.dbf' Size 800M AutoExtend On Next 100M Maxsize 2000M
EXTENT MANAGEMENT LOCAL
SEGMENT SPACE MANAGEMENT AUTO;

Alter Tablespace Rename Datafile


INCREASE THE TABLESPACE SIZE
If you get a message like:
ORA-1654: unable to extend index IFSSYS.SYS_C002067 by 64 in tablespace FG_DATA

Then you will need to increase the datafile size associated to that Tablespace, so perform the following steps:
1- First, see how filled up the current datafile(s) are:
select FILE_NAME, BYTES/1024/1024 'Size MB', BLOCKS, MAXBLOCKS from dba_data_files where tablespace_name = 'PPP_DATA';

FILE_NAME SizeMB BLOCKS MAXBLOCKS
---------------------------------------------- --------- --------- ------------------
/usr/local/oracle/oradata/webct/fg_data01.dbf 400 524284 524228
Notice that the BLOCKS 524284 = MAXBLOCKS 524288, that means that the tablespace is maxed out.

Now we can add another datafile to that tablespace:
alter tablespace FG_DATA add datafile '/usr/local/oracle/oradata/webct/fg_data02.dbf' size 1024M autoextend on next 100M maxsize 4096M;

Tablespace

or increase the existing one:
alter database datafile '/usr/local/oracle/oradata/webct/fg_data02.dbf' resize 800m;


REDUCETABLESPACE SIZE
This is probably one of the most complicated tasks to perform because you may have free space, but the last portion of the datafile associated to the tablespace may be used by an object, so the datafile will not reduce its size easily.

-- First Purge the Recycle bin
PURGE RECYCLEBIN;
-- You can use below script to find out how much you can resize your datafiles.
SET VERIFY OFF
COLUMN SMALLEST FORMAT 999,990
COLUMN CURRSIZE FORMAT 999,990
COLUMN SAVINGS FORMAT 999,990
COLUMN FILE_NAME FORMAT A50 WORD_WRAPPED
SET PAGES 60
BREAK ON REPORT
COMPUTE SUM OF SAVINGS ON REPORT
COLUMN VALUE NEW_VAL BLKSIZE
SELECT FILE_NAME, CEIL( (NVL(HWM,1)*&&BLKSIZE)/1024/1024 ) SMALLEST, CEIL( BLOCKS*&&BLKSIZE/1024/1024) CURRSIZE,
CEIL(BLOCKS*&&BLKSIZE/1024/1024)- CEIL( (NVL(HWM,1)*&&BLKSIZE)/1024/1024 ) SAVINGS
FROM DBA_DATA_FILES DBADF,
(SELECT FILE_ID, MAX(BLOCK_ID+BLOCKS-1) HWM FROM DBA_EXTENTS GROUP BY FILE_ID ) DBAFS
WHERE DBADF.FILE_ID = DBAFS.FILE_ID(+)
/
FILE_NAME SMALLEST CURRSIZE SAVINGS
-------------------------------------------------- -------- -------- --------
C:ORACLEPRODUCT10.2.0ORADATADIESYSTEM01.DBF 562 562 0
C:ORACLEPRODUCT10.2.0ORADATADIEUNDOTBS01.DBF 305 305 0
C:ORACLEPRODUCT10.2.0ORADATADIEUSERS01.DBF 78 80 2
C:ORACLEPRODUCT10.2.0ORADATADIEFG_DATA.DBF 1,751 1,751 0
C:ORACLEPRODUCT10.2.0ORADATADIESYSAUX01.DBF 420 420 0
--------
sum 2
-- You can Use below script to shrink datafiles to the smallest size that is possible.
COLUMN SHRINK_DATAFILES FORMAT A75 WORD_WRAPPED
COLUMN VALUE NEW_VAL BLKSIZE
SELECT VALUE FROM V$PARAMETER WHERE NAME = 'db_block_size';
SELECT 'ALTER DATABASE DATAFILE '' || FILE_NAME || '' RESIZE ' || CEIL( (NVL(HWM,1)*&&BLKSIZE)/1024/1024 ) || 'M;' SHRINK_DATAFILES
FROM DBA_DATA_FILES DBADF,
(SELECT FILE_ID, MAX(BLOCK_ID+BLOCKS-1) HWM FROM DBA_EXTENTS GROUP BY FILE_ID ) DBAFS
WHERE DBADF.FILE_ID = DBAFS.FILE_ID(+)
AND CEIL(BLOCKS*&&BLKSIZE/1024/1024)- CEIL((NVL(HWM,1)* &&BLKSIZE)/1024/1024 ) > 0 ;
SHRINK_DATAFILES
------------------------------------------------------------------------------------------
ALTER DATABASE DATAFILE 'C:ORACLEPRODUCT10.2.0ORADATADIESYSTEM01.DBF' RESIZE 562M;
ALTER DATABASE DATAFILE 'C:ORACLEPRODUCT10.2.0ORADATADIEUSERS01.DBF' RESIZE 78M;
ALTER DATABASE DATAFILE 'C:ORACLEPRODUCT10.2.0ORADATADIEFG_DATA.DBF' RESIZE 1751M;
Now you can execute the results of this query.
If you get ORA-03297, it means that some of those files are not able to being reduce.
-- Finding Objects that have Extents at the end of Datafile for the one that you got ORA-03297
SELECT substr(owner,1,15) OWNER, substr(SEGMENT_NAME,1,20) SEGMENT_NAME , substr(SEGMENT_TYPE,1,20) SEGMENT_TYPE, BLOCK_ID
FROM ( SELECT OWNER, SEGMENT_NAME, SEGMENT_TYPE, BLOCK_ID
FROM DBA_EXTENTS
WHEREFILE_ID= ( SELECT FILE_ID FROM DBA_DATA_FILES WHERE FILE_NAME = &&FILE_NAME)
ORDERBYBLOCK_ID DESC
)
WHERE ROWNUM <= 10;


-- Rebuild the 1st Object (Using the biggest blobk) from that list and try to reduce the Tablespace Size.

--Try to brebuild it again:
alter database datafile 'C:ORACLEPRODUCT10.2.0ORADATADIEUSERS01.DBF' RESIZE 78M;

Managing Temp Datafiles
We can’t move the temp tablespace during mount stage like other datafiles using “ALTER DATABASE RENAME FILE..”, so a workaround this issue is to create a new temp tablespace.
SQL> drop tablespace temp;
drop tablespace temp
*
ERROR at line 1:
ORA-12906: cannot drop default temporary tablespace
--Try to resize it First
ALTER DATABASE TEMPFILE '/u02/oracle/data/lmtemp02.dbf' RESIZE 1000M;

– Create a new temporary temp tablespace
SQL> CREATE TEMPORARY TABLESPACE TEMP2 TEMPFILE '/u01/oradata/TESTDB/temp2_01.dbf' SIZE 100M AUTOEXTEND ON NEXT 100M MAXSIZE 5000M
EXTENT MANAGEMENT LOCAL UNIFORM SIZE 1024K
SEGMENT SPACE MANAGEMENT MANUAL;
– Change default temporary tablespace
SQL> ALTER DATABASE DEFAULT TEMPORARY TABLESPACE temp2;
– Drop old temp tablespace
SQL> drop tablespace temp including contents and datafiles;
– Recreate the FINAL TEMP with new file location
SQL> CREATE TEMPORARY TABLESPACE TEMP TEMPFILE '/u03/oradata/TESTDB/temp_01.dbf' SIZE 1000M AUTOEXTEND ON NEXT 100M MAXSIZE 5000M
EXTENT MANAGEMENT LOCAL UNIFORM SIZE 1024K
SEGMENT SPACE MANAGEMENT MANUAL;
– Make the temp default again
SQL> ALTER DATABASE DEFAULT TEMPORARY TABLESPACE temp;
– Drop temp2 tablespace
SQL> drop tablespace temp2 including contents and datafiles;


If the Drop Process takes too long, the following queries may assist you on that:

--Who is using TEMP ?
SELECT b.tablespace,b.segfile#,b.segblk#,b.blocks,a.sid,a.serial#,
a.username,a.osuser, a.status
FROM v$session a,v$sort_usage b
WHERE a.saddr = b.session_addr;

--Identify users on a specific Tablespace
set lnesize 120
select tu.username,s.sid,s.serial# , s.logon_time, s.TERMINAL
from v$tempseg_usage tu, v$session s
where tu.session_addr=s.saddr
and tu.tablespace='TEMP';

USERNAME SID SERIAL# LOGON_TIME TERMINAL
------------------------------ ---------- ---------- ------------------ ----------------
CCI_DKEETH 720 15277 15/OCT/18 11:05:14 CLDV-TS1
CCI_DKEETH 720 15277 15/OCT/18 11:05:14 CLDV-TS1
CCI_EOGAN 723 5171 15/OCT/18 11:00:43 CLDV-TS2
CCI_DFISHER 727 53931 15/OCT/18 11:00:16 CLDV-TS3
INVENTORY_SERVER 735 16400 14/OCT/18 00:47:51 CLDV-SWRMS1
INVENTORY_SERVER 735 16400 14/OCT/18 00:47:51 CLDV-SWRMS1
CCI_NSANDY 736 56939 15/OCT/18 09:00:07 CLDV-TS3
CCI_NSANDY 736 56939 15/OCT/18 09:00:07 CLDV-TS3


ALTER SYSTEM KILL SESSION '&sid,&SERIAL';
select * from v$tempseg_usage where tablespace='TEMP'
--Detect Sessions and what they are doing
SELECT a.username, a.sid, a.serial#, a.osuser, b.tablespace, b.blocks, c.sql_text
FROM v$session a, v$tempseg_usage b, v$sqlarea c
WHERE a.saddr = b.session_addr
AND c.address= a.sql_address
AND c.hash_value = a.sql_hash_value
--AND tablespace = 'TEMP'
ORDER BY b.tablespace, b.blocks;


Managing UNDO Datafile
In order to reduce the size of the UNDO Tablespace, we need to perform the following (assuming UNDOTBS1 is the tablespace name):
create undo tablespace UNDOTBS2 datafile '/u03/oradata/TESTDB/UNDOTBS02.DBF' size 100M AUTOEXTEND ON NEXT 20M MAXSIZE 5000M;
alter system set UNDO_TABLESPACE=UNDOTBS2;
drop tablespace UNDOTBS1 including contents and datafiles;


Managing Control Files

The current location of the controlfiles can be queried from the V$CONTROLFILE view, as shown below.
select name from v$controlfile;
NAME
---------------------------------------------------------------
/u01/app/oracle/product/9.2.0/oradata/DEVSOL/control01.ctl
/u01/app/oracle/product/9.2.0/oradata/DEVSOL/control02.ctl
/u01/app/oracle/product/9.2.0/oradata/DEVSOL/control03.ctl
In order to rename or move these files we must alter the value of the control_files instance parameter.
show parameter control_files
ALTER SYSTEM SET control_files='C:ORACLEORADATAFMSCONTROL01.CTL','R:ORACLEORADATAFMSCONTROL02.CTL','S:oradatafmsCONTROL03.CTL' SCOPE=SPFILE;

To move or rename a controlfile do the following:
* Alter the control_files parameter using the ALTER SYSTEM comamnd.
* Shutdown the database.
* Rename the physical file on the OS.
* Start the database.
The following SQL*Plus output shows how this is done for an instance using an spfile. For instances using a pfile replace the spfile manipulation steps with an amendment of the parameter in the init.ora file.
ALTER SYSTEM SET control_files='/new_path/control01.ctl', '/new_path/control02.ctl', '/new_path/control03.ctl' SCOPE=SPFILE;
SHUTDOWN IMMEDIATE
!mv /old_path/control01.ctl /new_path/control01.ctl
!mv /old_path/control02.ctl /new_path/control02.ctl
!mv /old_path/control03.ctl /new_path/control03.ctl
STARTUP

Repeating the initial query shows that the the CONTROLFILES has been renamed in the data dictionary.
select name from v$controlfile;

Oracle Drop Datafile From Tablespace


Managing Logfiles
--The current status of the logfiles can be queried from the V$LOG view with:

select status, bytes/1024/1024, group# from v$log;


STATUS BYTES/1024/1024 GROUP#
---------------- --------------- ----------
CURRENT 50 1
ACTIVE 50 2
INACTIVE 50 3

The current location of the logfiles can be queried from the V$LOGFILE view, as shown below.
select group#, member from v$logfile;
GROUP# MEMBER
---------- ----------------------------------------------------------
1 C:ORACLEPRODUCT10.2.0ORADATADEV10G2REDO01.LOG
2 C:ORACLEPRODUCT10.2.0ORADATADEV10G2REDO02.LOG
3 C:ORACLEPRODUCT10.2.0ORADATADEV10G2REDO03.LOG
To move or rename a logfile do the following:
* Shutdown the database.
* Rename the physical file on the OS.
* Start the database in mount mode.
* Issue the ALTER DATABASE RENAME FILE command to rename the file within the Oracle dictionary.
* Open the database.
The following SQL*Plus output shows how this is done.
SHUTDOWN IMMEDIATE
!mv /old_path/redo01.log /new_path/redo01.log
!mv /old_path/redo02.log /new_path/redo02.log
!mv /old_path/redo03.log /new_path/redo03.log
STARTUP MOUNT
ALTER DATABASE RENAME FILE '/old_path/redo01.log' TO '/new_path/redo01.log';
ALTER DATABASE RENAME FILE '/old_path/redo02.log' TO '/new_path/redo02.log';
ALTER DATABASE RENAME FILE '/old_path/redo03.log' TO '/new_path/redo03.log';
ALTER DATABASE OPEN;
Repeating the initial query shows that the the logfile has been renamed in the data dictionary.
select group#, member from v$logfile;

SimpleLog Management
--Status of the Archiver
select * from v$instance;

--Restart the Archiver
alter system archive log start;

--Switch Online Log
alter system switch logfile;
alter system checkpoint;

Alter Tablespace Rename Datafile

--Add Logfile Group
alter database add logfile group 4 ('&logfilename1', '&logfilename2') size 500M;
--Drop logfile group and all members in it
alter database drop logfile group &Number;
--Add Logfile Member
alter database add logfile member '&logfilename' reuse to group 4;
--Drop Logfile Member
alter database drop logfile member '&logfilename';

--Checking archivelog mode
select dbid, name, resetlogs_time, log_mode from v$database;

-- Archiver Destinations
select * from v$archive_dest;

--Altering destination
alter system set log_archive_dest_1='location=&path';
alter system set log_archive_dest_state_1='enable';

Alter Tablespace Rename DatafileAlter Tablespace Rename Datafile

Alter Tablespace Rename Datafile Asm

--The sequence# of last backed up log
select thread#, max(sequence#) from v$archived_log
where BACKUP_COUNT>0 group by thread#;

--Redo size (MB) per day, last 30 days
select trunc(first_time) arc_date, sum(blocks * block_size)/1048576 arc_size
from v$archived_log
where first_time >= (trunc(sysdate)-30)
group by trunc(first_time);
